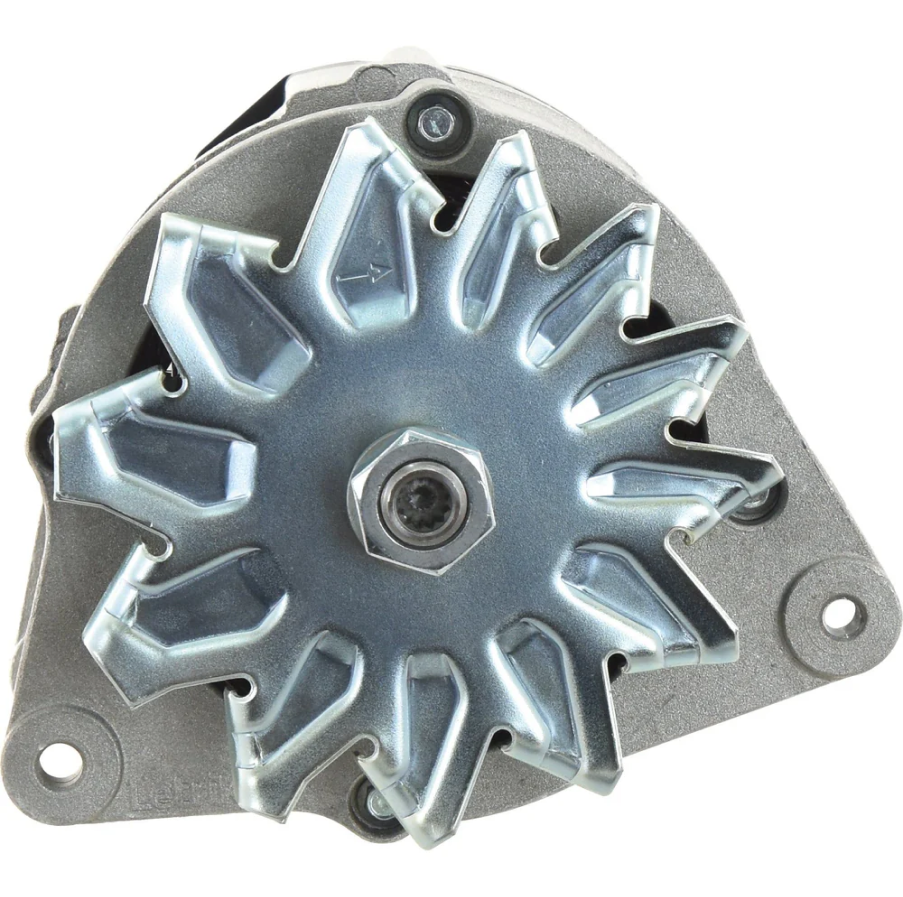

Alternator (Mahle) – 14V, 70 Amps | Sparex Part No.S.36169 4.0 kg

Alternator (Mahle) – 14V, 70 Amps
Product Specifications
A (mm): 80.5
a Angle °: 60
Amps: 70
B (mm): 8.2
Brand: Mahle
C (mm): 86
Connection 1: W
Connection 2: D+
Connection 3: B+
Connection 4: B-
Connection Type: Connector
Fan Type: External
Height (mm): 157.1
Length (mm): 206.4
Mounting Hole mm: 8.2
Number of holes: Two
Nut: Hex Nut
Pulley type: Without
Related products: 35911,36003
Replacement Regulator: S.36003
Shaft Type: Hex
Supplied with Fan: Yes
Tariff Code:8511500090
Type: C2
Volts: 14V
Width (mm): 174.6
Suitable For Infomation
Case IH / International Harvester C100, C50, C60, C70, C80, C90, CX100, CX50, CX60, CX70, CX80, CX90 Massey Ferguson 154, 184, 273, 274, 274SK, 283 BRAZILIAN, 284, 294, 294C, 383, 50H, 698T
Manufacture Information
Case IH / International Harvester K311704, 229301A1, 188590A1 Claas 6005706664 Ford / New Holland 229301A1 Iskra IA0811 Land Rover AUU1053, RTC5846, ADU1148, AUU1184, YLE101560, YLE101700 Lester 12074, 12072, 12239, 14054 Lucas LRA00462, LRA00653, 24297, LRA00693, LRA00463 Massey Ferguson 3641684M91, 4223493M91, LRA462, 6100316M91 Perkins 2871A161, 2871A142 Valeo VA135
