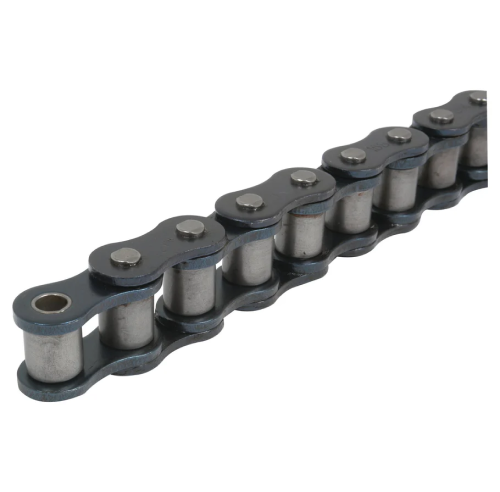

Drive Chain – Simplex, 100-1 HV (5M) | Sparex Part Number: S.166009 18.8 kg

B1 (mm): 18.90
B2 (mm): 29.10
B4 (mm): 44.50
B7 (mm): 6.10
Brand: iwis
Chain Reference: 100-1 HV
Connecting pin Ø (mm): 9.54
d1 (mm): 19.05
d2 (mm): 9.54
d3 (mm): 4.70
d4 (mm): 4.70
H2 (mm): 30.17
Length (M): 5
P (mm): 31.75
P ins: 1 1/4
Pitch (ins): 1 1/4
Pitch (mm): 31.75
Related products: 166010, 166011
Roller width (ins): 3/4
Roller width (mm): 18.90
Roller Ø (mm): 19.05
Specification: ELITE
Tariff Code: 7315190000
Tensile Strength (FB) KN: 133.40
Type: Simplex
