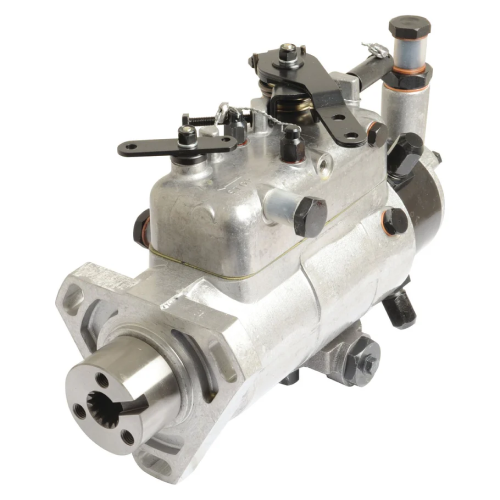

Fuel Injection Pump Head and Rotor Kit | Sparex Part No.S.105961 6.0 kg

Ford Motor BSD326, BSD329
Product Specifications
Automatic advance range: +3° to +10°
Brand: Sparex
Classification ID: 7243
Engine Manufacturer: Ford Motor
Engine Model: BSD326, BSD329
Fuel lubrificated: For test: Calibration Oil ISO4113 For operate: diesel fuel
Hydraulic Timing Device: Yes
Maximum Peak Injection Pressure (bar): 500
Maximum Plunger Stroke (mm): 1.5
Maximum Power per Engine Cylinder (kw): 20
Maximum Pump Speed rpm: 2500
Mechanical Governor: Yes
Number of Plungers: 2
Number of Pumping Outlets: 3
Plunger Diameter (mm): 9.5
Pressure (bar): 0.1
Pump rotation: Clockwise
Related products: 105974, 44020, 44021
Tariff Code:8413308090
Temperature range: -20°C to +81°C
Suitable For Infomation
Ford / New Holland 2000, 2100, 2110, 2120, 2150, 2300, 230A, 231, 2310, 233, 234, 2600, 2600N, 2600V, 2610, 2610V, 2810, 2910, 3000, 3055, 3100, 3120, 3300, 3310, 333, 3330, 334, 335, 3400, 3500, 3550, 3600, 3600N, 3600V, 3610, 3610V, 3900, 3910, 3910N, 3910V
Manufacture Information
CAV 3233F661, CAV3833F661 Ford / New Holland D6NN9A543F, E2NN9A543TB, E2NN9A543TA, 83947846, 83954934 Lucas CAV3833F661
