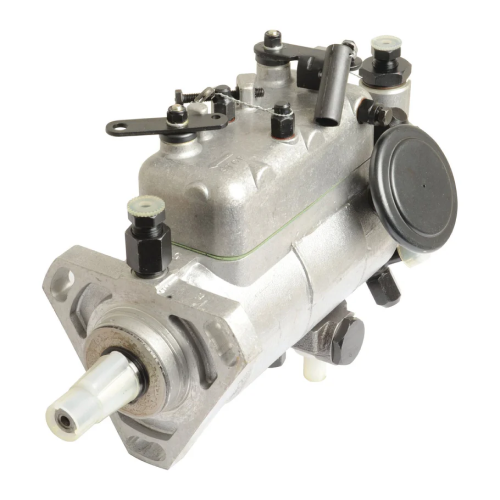

Fuel Injection Pump Head and Rotor Kit | Sparex Part No.S.105966 6.0 kg

Unviersal Motor D155.000, D155.050
Product Specifications
Automatic advance range: -3° to +2°
Brand: Sparex
Classification ID: 17618
Engine Manufacturer: Unviersal Motor
Engine Model: D155.000, D155.050
Fuel lubrificated: For test: Calibration Oil ISO4113 For operate: diesel fuel
Hydraulic Timing Device: Yes
Maximum Peak Injection Pressure (bar): 500
Maximum Plunger Stroke (mm): 1.5
Maximum Power per Engine Cylinder (kw): 20
Maximum Pump Speed rpm: 2500
Mechanical Governor: Yes
Number of Plungers: 2
Number of Pumping Outlets: 3
Plunger Diameter (mm): 9
Pressure (bar): 0.1
Pump rotation: Anti-Clockwise
Related products: 105979, 44020, 44021
Tariff Code:8413308090
Temperature range: -20°C to +86°C
Suitable For Infomation
Allis Chalmers 5040, 5045 Universal Tractors 350, 353, 445, 453, 530, 533
Manufacture Information
CAV 3233F430, CAV3832F051 Lucas CAV3832F051 Universal Tractors 769397
