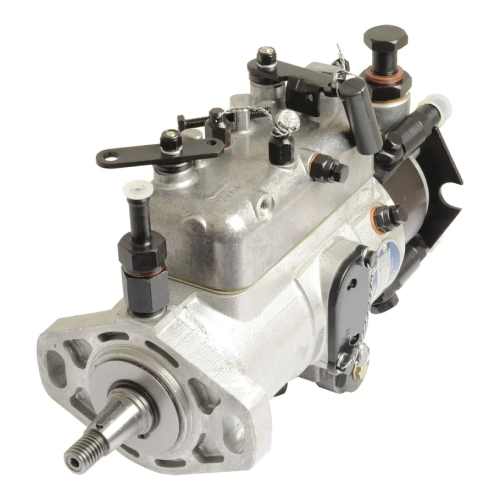

Fuel Injection Pump Head and Rotor Kit | Sparex Part No.S.105969 6.0 kg

Case IH Motor D155, Bosch Equivalent
Product Specifications
Automatic advance range: -1° to +5°
Brand: Sparex
Classification ID: 7323
Engine Manufacturer: Case IH Motor
Engine Model: D155, Bosch Equivalent
Fuel lubrificated: For test: Calibration Oil ISO4113 For operate: diesel fuel
Hydraulic Timing Device: Yes
Maximum Peak Injection Pressure (bar): 500
Maximum Plunger Stroke (mm): 1.5
Maximum Power per Engine Cylinder (kw): 20
Maximum Pump Speed rpm: 2500
Mechanical Governor: Yes
Number of Plungers: 2
Number of Pumping Outlets: 3
Plunger Diameter (mm): 8.5
Pressure (bar): 0.1
Pump rotation: Clockwise
Related products: 105971, 44020, 44021
Tariff Code:8413308090
Temperature range: -20°C to +89°C
Suitable For Infomation
Case IH / International Harvester 383, 423, 453
Manufacture Information
Bosch 0460303025 Case IH / International Harvester 3144268R91, 3055345R92
