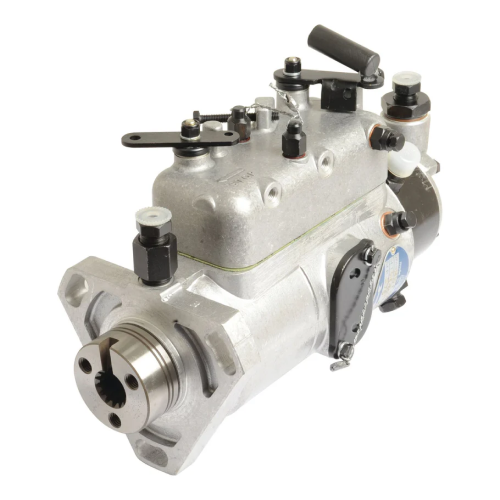

Fuel Injection Pump | Sparex Part No.S.105950 2.62 kg

Perkins A3.144, A3.152
Product Specifications
Automatic advance range: No
Brand: Sparex
Classification ID: 13817
Engine Manufacturer: Perkins
Engine Model: A3.144, A3.152
Fuel lubrificated: For test: Calibration Oil ISO4113 For operate: diesel fuel
Hydraulic Timing Device: No
Maximum Peak Injection Pressure (bar): 500
Maximum Plunger Stroke (mm): 1.5
Maximum Power per Engine Cylinder (kw): 20
Maximum Pump Speed rpm: 2500
Mechanical Governor: Yes
Number of Plungers: 2
Number of Pumping Outlets: 3
Plunger Diameter (mm): 8.5
Pressure (bar): 0.1
Pump rotation: Clockwise
Related products: 105971, 24893, 24894, 24895, 44020, 44021
Tariff Code:8413308090
Suitable For Infomation
Massey Ferguson 35
Manufacture Information
CAV 36962, 36185, 36823, 36827, 3230F030 Landini 3639020M1, 136962 Lucas CAV3230F030 Massey Ferguson 3639020M1
