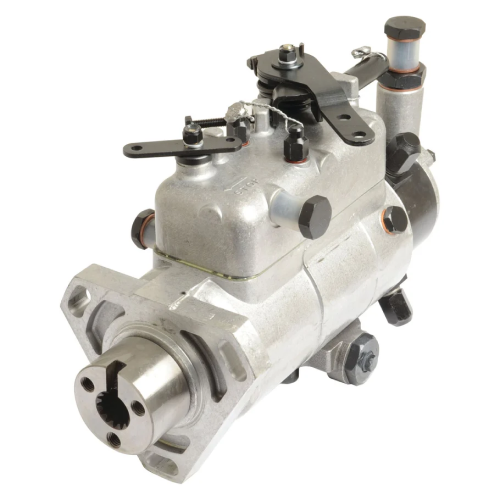

Fuel Injection Pump | Sparex Part No.S.105960 6.0 kg

Ford Motor BSD329
Product Specifications
Automatic advance range: 0° to +8°
Brand: Sparex
Classification ID: 7243
Engine Manufacturer: Ford Motor
Engine Model: BSD329
Fuel lubrificated: For test: Calibration Oil ISO4113 For operate: diesel fuel
Hydraulic Timing Device: Yes
Maximum Peak Injection Pressure (bar): 500
Maximum Plunger Stroke (mm): 1.5
Maximum Power per Engine Cylinder (kw): 20
Maximum Pump Speed rpm: 2500
Mechanical Governor: Yes
Number of Plungers: 2
Number of Pumping Outlets: 3
Plunger Diameter (mm): 9.5
Pressure (bar): 0.1
Pump rotation: Clockwise
Related products: 105974, 24893, 24894, 24895, 44020, 44021
Tariff Code:8413308090
Temperature range: -20°C to +80°C
Suitable For Infomation
Ford / New Holland 3000, 3600
Manufacture Information
CAV 3233F380 Ford / New Holland 87763985, D0NN9A543J, D6NN9A543JR Lucas CAV3233F380
