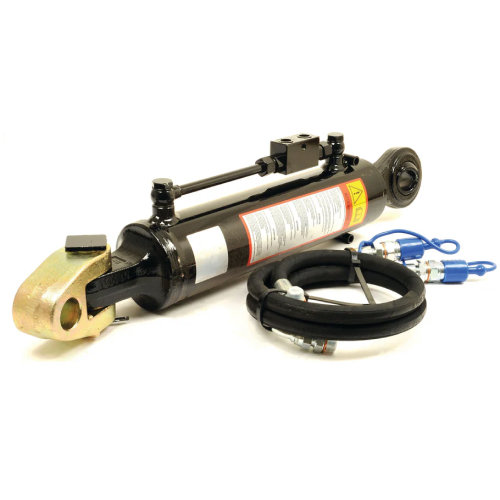

Hydraulic Top Link (Cat.35mm/3) Knuckle and Ball, Cylinder Bore: 120mm, Min. Length : 760mm. | Sparex Part No.S.119713 46.55 kg

Min. Length : 760mm, Max. Length : 995mm, Supplied with : Hose Set.
Product Specifications
A (mm): 200
Alternative to: 119710
Brand: Sparex
Category Implement End: 3
Category Tractor End: 35mm
Category: 35mm/3
Check Valve Position: Top
Cylinder Bore (mm): 120
Implement End: Ball
Lift kgs @180 bar: 18600
Maximum Length (mm): 995
Minimum Length (mm): 760
Related products: 33137, 33144, 33158, 39965, 39966, 39967, 39968, 119705, 119709, 164592
Rod Ø (mm): 50
Suitable for Tractors up to HP/Kw: 400hp (294kW)
Supplied with: Hose Set
Tariff Code: 8412212090
Thrust kgs @180 (bar): 24600
Tractor End: Knuckle

Suitable For Infomation
John Deere 8100, 8200, 8300, 8400
Manufacture Information
This product is not associated with any particular OEM part number
