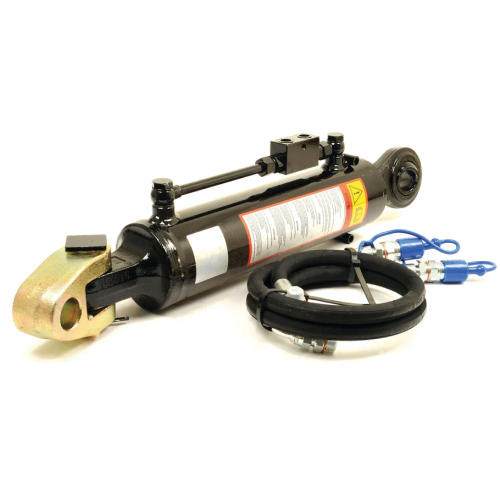

Hydraulic Top Link (Cat.37mm/3) Knuckle and Ball, Cylinder Bore: 120mm, Min. Length : 760mm. | Sparex Part No.S.119714 46.55 kg

Min. Length : 760mm, Max. Length : 995mm, Supplied with : Hose Set.
Product Specifications
A (mm): 200
Alternative to: 119710
Brand: Sparex
Category Implement End: 3
Category Tractor End: 37mm
Category: 37mm/3
Check Valve Position: Top
Cylinder Bore (mm): 120
Implement End: Ball
Lift kgs @180 bar: 18600
Maximum Length (mm): 995
Minimum Length (mm): 760
Related products: 33137, 33144, 33158, 39965, 39966, 39967, 39968, 119706, 119709, 164592
Rod Ø (mm): 50
Suitable for Tractors up to HP/Kw: 400hp (294kW)
Supplied with: Hose Set
Tariff Code: 8412212090
Thrust kgs @180 (bar): 24600
Tractor End: Knuckle

Suitable For Infomation
Challenger MT255B, MT265, MT265B, MT275, MT275B, MT275N, MT285, MT285B, MT295B, MT297B, MT315B, MT325B, MT335B, MT345B, MT425B, MT434, MT444, MT445B, MT454, MT455B, MT455D, MT464, MT465B, MT465D, MT475B, MT476, MT485D, MT495D, MT515D, MT515E, MT525B, MT525D, MT535, MT535B, MT535D, MT545, MT545B, MT545D, MT545E, MT555, MT555B, MT555D, MT565, MT565B, MT565D, MT575B, MT575D, MT585B, MT585D, MT595B, MT595D, MT635B, MT645B, MT645C, MT655, MT655B, MT655C, MT665B, MT665C, MT675C Deutz-Fahr AGROTRON 9270 TTV, AGROTRON 9290 TTV, AGROTRON 9310 TTV, AGROTRON 9340 TTV

Manufacture Information
This product is not associated with any particular OEM part number
