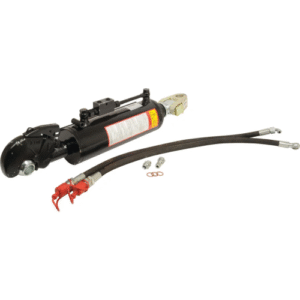

Hydraulic Top Link (Cat.4/4) Knuckle and Q.R CBM Hook, Cylinder Bore: 120mm, Min. Length : 760mm. | Sparex Part No.S.119726 49.64 kg

Min. Length : 760mm, Max. Length : 995mm, Supplied with : Hose set, chain & ball, marker label with knuckle & pin.

Product Specifications
A (mm): 200
Alternative to: 119711
Brand: Sparex
Category Implement End: 4
Category Tractor End: 4
Category: 4/4
Check Valve Position: Top
Cylinder Bore (mm): 120
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 18600
Maximum Length (mm): 995
Minimum Length (mm): 760
Related products: 33137, 33144, 33158, 39965, 39966, 39967, 39968, 118459, 118460, 119708, 119709, 164592, 163766, 163767
Rod Ø (mm): 50
Suitable for Tractors up to HP/Kw: 400hp (294kW)
Supplied with: Hose set, chain & ball, marker label with knuckle & pin
Tariff Code: 8412212090
Top Link Ball Category: 4/4
Tractor End: Knuckle

Suitable For Infomation
Ford / New Holland T9.390, T9.435, T9.450, T9.480, T9.505, T9.530, T9.560, T9.565, T9.600, T9.615, T9.645, T9.670, T9.700 John Deere 7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R

Manufacture Information
John Deere RE311985
