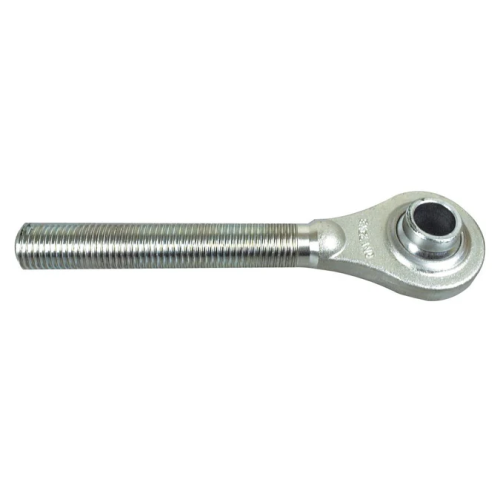

Top Link Ball End – 1 1/8” UNC – Cat.1 | Sparex Part No.S.343 1.0 kg

Ball Bore Ø:19mm, Thread length:143mm, Overall length:225mm
Product Specifications
Alternative to: 382
Ball Bore Ø (ins): 3/4
Ball Bore Ø (mm): 19
Ball Width (ins): 1 3/4
Ball Width (mm): 44.5
Brand: Sparex
Category: 1
End Radius (ins): 1 1/8
End Radius (mm): 28.6
Fitting: RH
Overall length (ins): 8 55/64
Overall length (mm): 225
Related products: 342
Tariff Code: 7303009090
Thread length (ins): 5 5/8
Thread length (mm): 143
Thread size: 1 1/8”
Thread type: UNC
Working length (ins): 7 3/4
Working length (mm): 197
Suitable For Infomation
This product is not associated with any particular make or model
Manufacture Information
This product is not associated with any particular OEM part number
